Appendix D - REST API

The REST interface for ReglaWebService is a wrapper around the SOAP interface already outlined in this document.

All REST calls are made as a HTTP POST request with the parh https://www.regla.is/fibs/RestAPI2019/{function} where {function] is replaced with the corresponding SOAP method.

The method name is case sensitive.

The body of the POST request should contain a JSON text object that contains all the parameters of the request.

The request must have the content-type application/json.

In case of a complex type parameter the JSON will be converted directly to that complex type (Product, Invoice etc.).

It is important that the POST request body is UTF-8 encoded if there are non-english letters in the JSON.

APIResponse Class

The response to every POST request is an APIResponse object.

Example

Following are examples of how you implement the client side of a REST connection.

All Python code examples are using the Request python package (http://docs.python-requests.org) and Python version 3.7.

Login

The login function takes in 2 parameters, the username and the password.

The response then returns the Result object, the Returned object, and any out-parameters that might have been included in the function.

POST Request body

Response

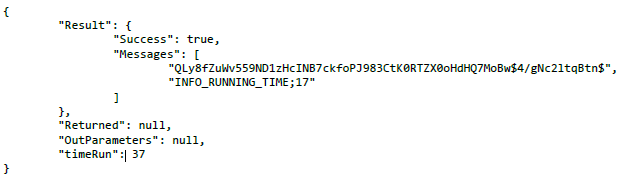

The Login request is returned with a login token and information about the running time of the request.

Python Example

GetPaymentMethod

This function takes a login token for a verification and returns available payment methods.

POST Request body

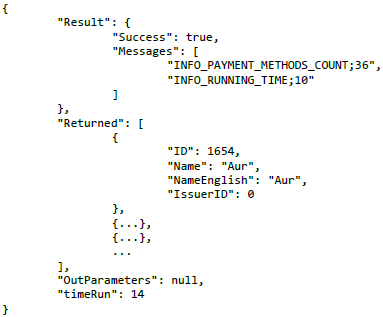

Response

GetCustomer

Gets a customer by CustomerNumber.

Provide a login token like with other methods.

Post request body

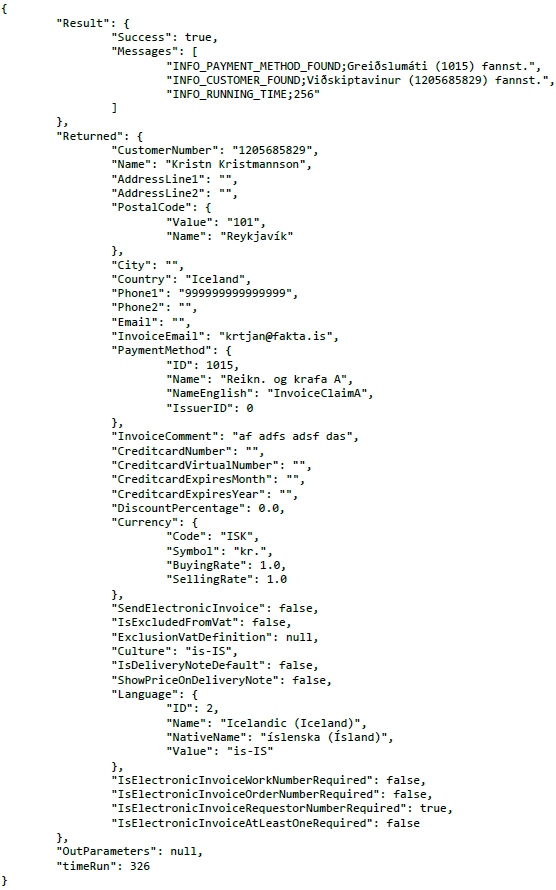

Response

Python Example

CreateInvoice

This method will create an invoice by sending in a complex type Invoice as JSON string.

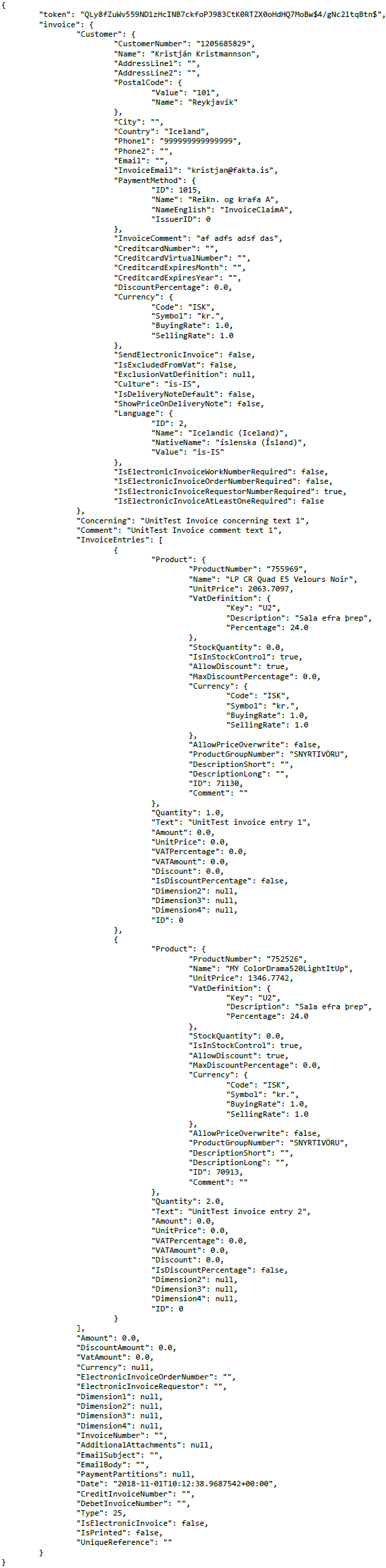

POST Request body JSON

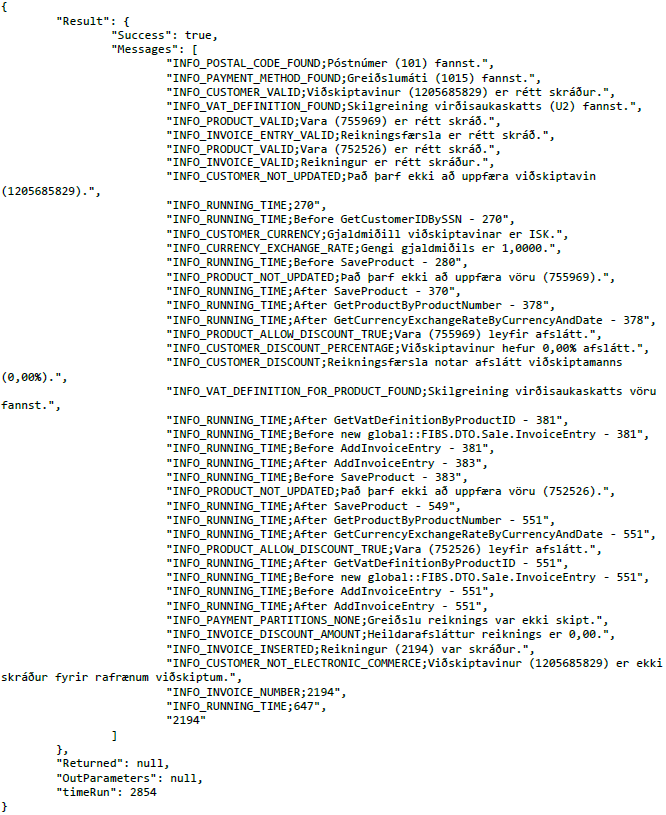

Response

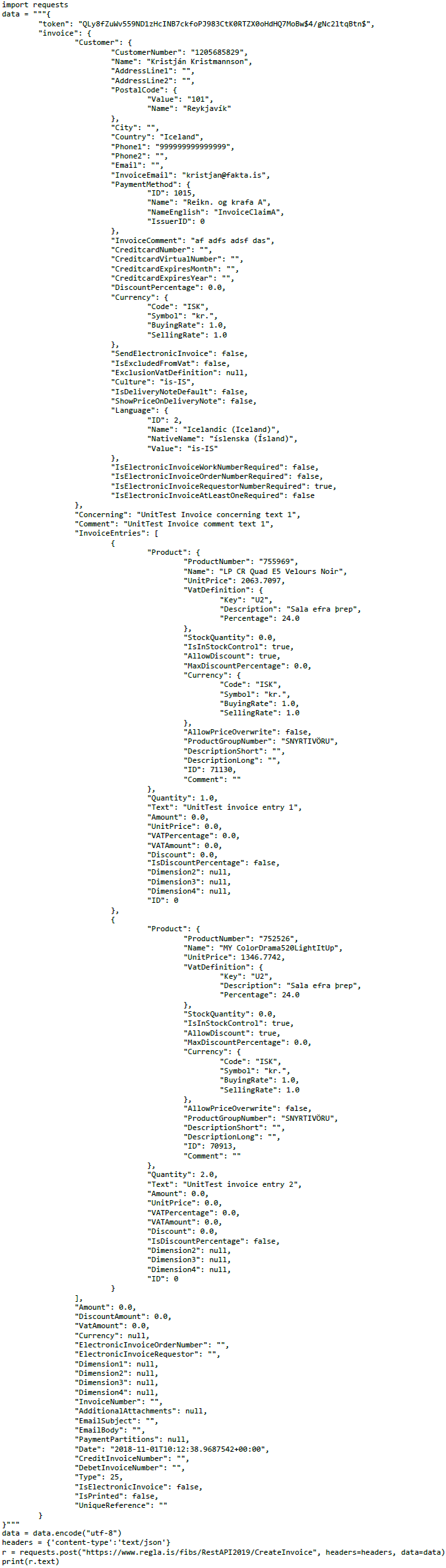

Python Example

CreateInvoice.py
